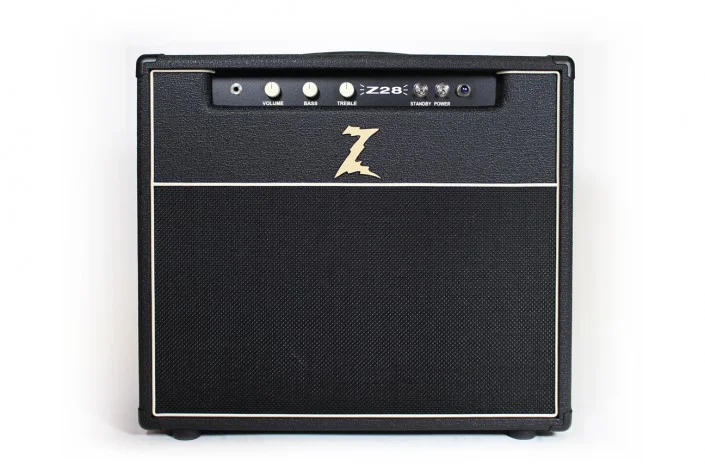

Dr.Z Z 28

“The tone stack of Route 66 and the sparkle of the 6V6 makes this a great amp at any volume…” – Dr. Z

Specifications

Power Output22 Watts

Output Tubes2 – 6V6

Preamp Tubes1 – EF86 (NOS), 1-12AX7

Rectifier1 – 5AR4

ControlsVolume, Bass, Treble

ConfigurationsHead, 1×10 Combo, 1×12 Ultra Lite Combo, 2×10 Ultra Lite Combo

ColorsBlack, Blonde, Red

Dimensions & WeightHead: 17 1/2” W, 9” H, 9 1/2” D; 29 lbs.
1×10: 17 1/2” W, 17” H, 10” D; 45 lbs.
1×12 Combo: 22 1/2” W, 20 1/8” H, 10” D; 48 lbs.
2×10 Combo: 22 1/2” W, 20 1/8” H, 10” D; 51 lbs.

Owners ManualDownload

General Information

The Z 28 shares the same EF-86 front end as its bigger brothers the Route 66 and KT45. Pairing this front end with a pair of fixed bias 6V6s yields an authority not heard before from a dual 6V6 design. Having more of an American type sound, the Z 28 gives you a wide pallet to work from. You can dial in a clear, sweet clean sound as well as a biting crunch with just 3 knobs. Like our other 3 knob amps, the treble and bass function normally until 12:00 and dial in gain once turned past noon. The stout, tube rectified power supply gives the Z 28 a tight low end and makes it very pedal friendly. You won’t find the typical short comings of a dual 6V6 amp here. Weighing in at approximately 22 watts, the Z 28 is great for most gig/studio situations.
