Custom audio PT100

The Suhr PT100 features three distinct channels offering unmatched versatility

Channel 1: The green channel is an American voiced clean with bottom end punch and seemingly limitless headroom. It responds well to pedals and has a Crunch mode that can be enabled which pushes this channel into medium gain, overdrive territory.

Channel 2: The blue channel is voiced like a vintage British style amp, but with more gain on tap. Pete wanted this channel to sound similar to another one of his favorite amps, the Suhr SL68, but with gain available in the preamp section. This is an extremely versatile channel that works equally well with low, mid, and even high gain tones.

Channel 3: The red channel is the ultimate high gain, modded British tone, that only Suhr can deliver. Its heritage is from the legendary high gain circuit of the Custom Audio Amplifiers. The gain is thick and juicy, with rich harmonic overtones and limitless sustain.

OUTPUT:100 watts RMS

PREAMP TUBES:6x 12AX7

POWER TUBES:4x EL34

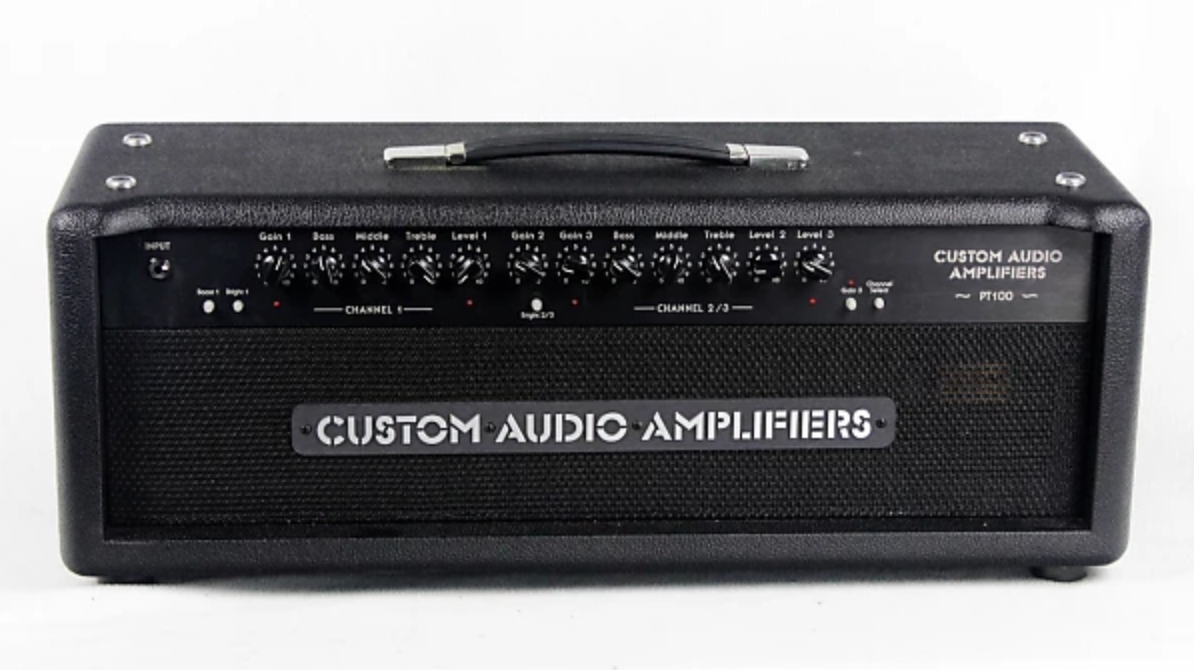

FRONT PANEL:Input, (CH1) Crunch Switch, Bright Switch, Gain 1, Bass, Middle, Treble, Level 1, (CH 2/3): Bright 2/3 Switch, Gain 2, Gain 3, Bass, Middle, Treble, Level 2, Level 3, Boost Switch, Channel Select Switch

BACK PANEL:Power Select Switch, Fuse / Power Entry Module, Standback/Standby Switch, H.T. Fuse, Speaker Outputs, (16Ω, 8Ω, & 4Ω), Feedback, Presence, Depth Switch, Effects Loop Return Level, In/Active Switch, In Inst. Switch, Send and Return Jacks, Series/Mix Switch, MIDI IN, MIDI THRU

FOOTSWITCH DIMENSIONS:11.5” (L) x 3.26” (W) x 1.72” (H)

WEIGHT:55lbs
